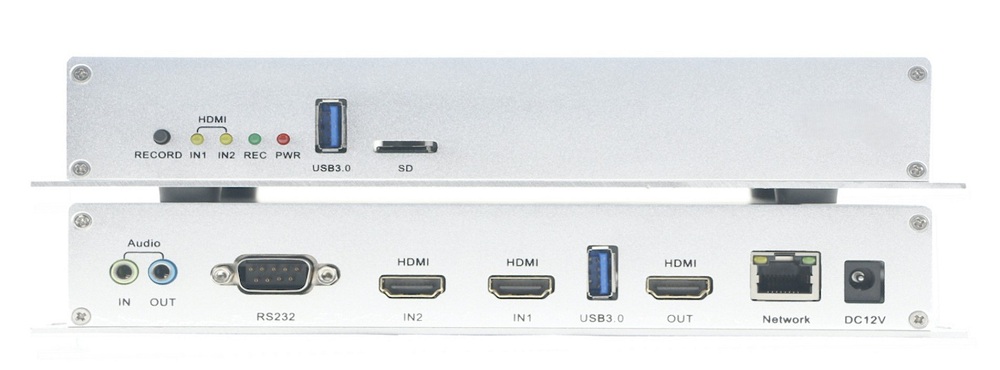

2-Channel 4K@60 HDMI Encoder & Decoder

A professional-grade all-in-one embedded encoder and decoder system that supports 2-channel 4K@60 H.265 encoding and 1-channel 4K@60 H.265 decoding and display. It allows 2 encode + 1 decode mixed operation for 3-camera production with PIP (Picture-in-Picture) switching. Equipped with dual USB 3.0 ports and one SD card slot for local recording, this device is ideal for broadcasting, education, video conferencing, and live streaming applications.

Key Features

• System Structure: All-in-one embedded design

• Video Capture: Hardware-based acquisition

• Video Input: 2 × HDMI 2.0

• Input Resolutions: 4K@60 (3840×2160), 4K@30, 1080P@60, and others

• Audio Input: 3.5mm stereo, 48kHz sampling, AAC encoding

• Video Output: HDMI 2.0 (supports 4K@60, 3840×2160@60Hz)

• Network Interface: 1 × Gigabit Ethernet (1000M)

• Serial Port: 1 × RS232

• USB Ports: 2 × USB3.0 (supports U-disk and Wi-Fi dongle)

• Streaming Delay: ≤ 1 second

• Recording Format: MP4

• Recording & Streaming Functions:

  • Synchronous recording and live streaming

  • On-demand playback

  • Local or remote video mixing/switching

• Recording Modes:

  • Multi-stream multi-view (resource mode)

  • Single-stream single-view (movie mode)

  • Single-stream multi-view (PIP mode)

• App Support: iOS & Android apps available for live and on-demand viewing via mobile phones or tablets

Applications

• Multi-camera live broadcasting

• Online education and training

• Medical and conference video recording

• Streaming studios and field production
