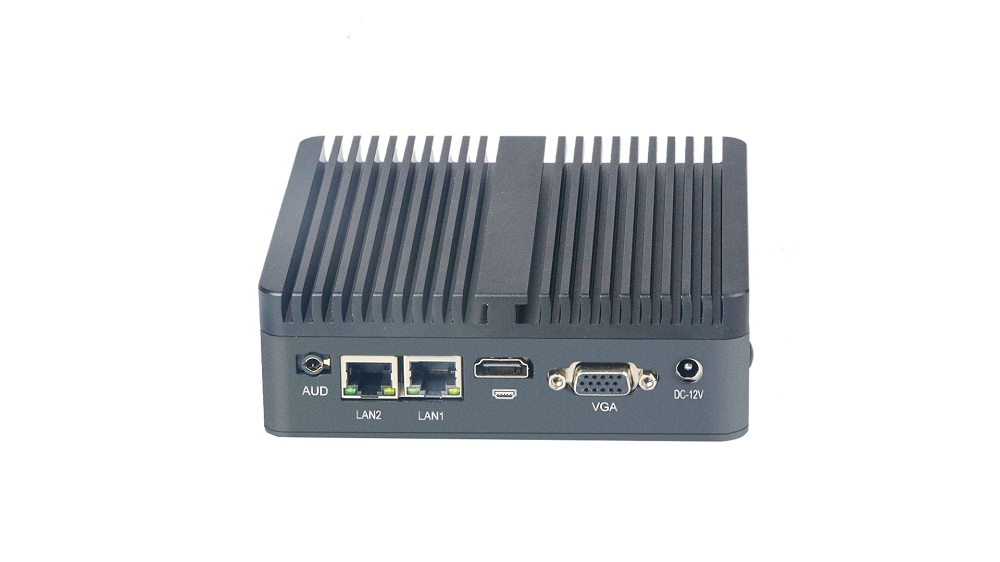

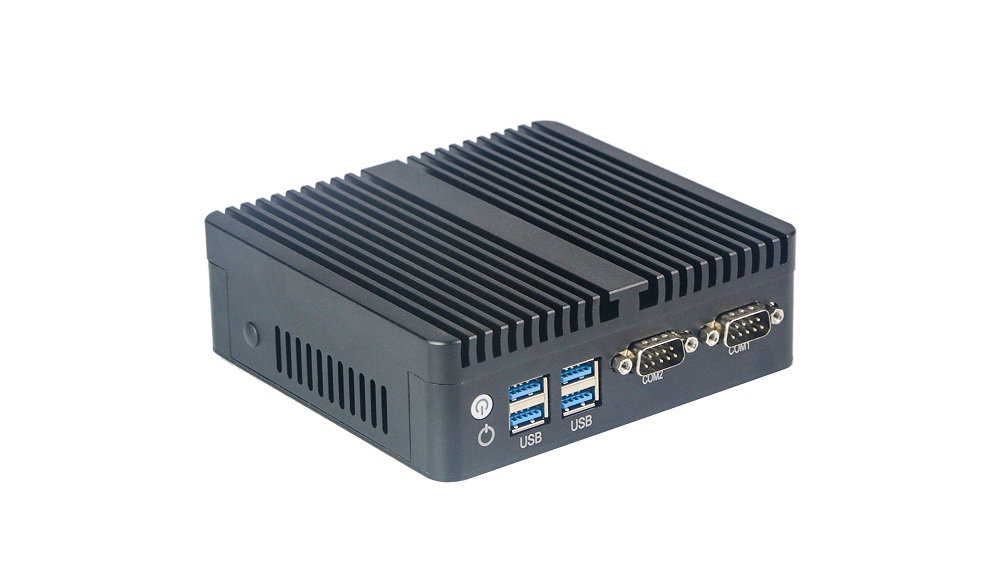

The D460 is a high-performance universal decoder designed for multi-brand encoder compatibility and professional video display applications.
Built on a Linux embedded system, it supports multi-stream input, multi-stream decoding, and multi-screen display with advanced Web control and SDK support for secondary development.
The system provides dual video outputs (VGA and HDMI), enabling simultaneous display on multiple screens, and features robust audio decoding and output options for both analog and digital environments.
Dual Video Outputs: One HDMI and one VGA interface, supporting simultaneous display.
Audio Output Options: Selectable 3.5mm stereo analog or HDMI digital audio output with CD-quality sound.
High-Definition Decoding: Supports real-time decoding of 4K/1080P/VGA streams; compatible with H.265/H.264 video and AAC/MP3 audio.
Flexible Stream Access: Auto-play any stream address at startup; supports direct point-to-point decoding from encoder devices.
Multi-Stream Display: Decodes and displays multiple streams simultaneously with various screen layout modes and supports up to 16-channel stream polling.
Browser-Based Management: Built-in Web control interface with 8GB FTP storage for online file management; supports startup playback or scheduled playback of internal media (images or videos).
Comprehensive Protocol Support: Full protocol decoding — HTTP, UDP, RTSP, HTTP-TS, RTMP, and RTP.
Linux Embedded System: Delivers excellent stability, reliability, and long-term operation performance.
Flexible Resolution Settings: Supports multiple output resolutions up to 4K, 1920×1200, and 1080p.
RTMP Server Functionality: Supports up to 100 concurrent live stream relay connections.
SDK Available: Enables secondary development and system integration for custom applications.
Supports both live and on-demand decoding for versatile use in broadcasting, monitoring, and IPTV environments.
Universal compatibility with major domestic encoder and DVR manufacturers.
Designed for 24/7 operation in demanding environments such as education, security monitoring, healthcare, and digital signage.
Multi-screen video monitoring and control centers
Live event and broadcast streaming
Campus or enterprise IPTV systems
Medical and industrial visualization
Advertising and information display networks
PRODUCT SPECIFICATION
VGA Output1 × VGA output port Supported resolutions: 1600×1200@60Hz, 1920×1080@60Hz, 1920×1200@60Hz, 1280×1024@60Hz, 1024×768@60Hz, 1280×720@60Hz
HDMI Output1 × HDMI output port Supported resolutions: 3840×2160@60Hz, 2048×1536@60Hz, 1920×1080@60Hz, 1920×1200@60Hz, 1280×1024@60Hz, 1024×768@60Hz, 1280×720@60Hz
Audio Output1 × Line Out (3.5mm stereo) 1 × HDMI digital audio output
Video Decoding ResolutionUp to 4K (3840×2160@60Hz); supports 2048×1536, 1920×1080, 1280×720, 1600×1200, 800×600, 640×480 and others
Decoding ChannelsUp to 16 channels
Split DisplaySingle-screen display supported
Audio DecodingSupports AAC, MP3 decoding; CD-quality audio output
Network Interface1 × RJ45 10/100/1000Mbps adaptive Ethernet port
Serial Port1 × RS-232 (DB9)
USB Ports4 × USB Host
Audio Output1 × 3.5mm stereo output (Level: 2.0Vp-p, Impedance: 1KΩ)
Streaming ProtocolsUDP, HTTP, RTSP, RTMP, HTTP-TS
RTMP Server FunctionSupports up to 100 concurrent live stream relays
Internal Storage8GB built-in storage
ManagementFTP file management
Playback ModeDirectory loop playback; supports startup playback and scheduled switching
Operating SystemEmbedded Linux
Dimensions (W×D×H)130mm × 120mm × 40mm
PowerDC 12V, consumptiom ≤ 20W
