Recording, Live Broadcast & Interactive Training HDMI encoder

IS-SE15S PLUS Recording, Live Broadcast & Interactive Training HDMI encoder

SE15S Plus 5* HDMI+ 1* IP Video Mixer/ Switcher/ Streaming and Recording Encoder

PRODUCT INTRODUCTION

All-in-one 4K embedded video recording and streaming encoder with HDMI inputs, H.265/H.264 encoding, touch control, remote directing, and virtual background support. with LCD Screen display, which is designed for seamless recording, streaming, live directing, and playback, making it ideal for education, healthcare, training, and professional broadcasting.

DATASHEET VIDEO

PRODUCT DETAILS

SE15S Plus 5* HDMI+ 1* IP Video Mixer/ Switcher/ Streaming and Recording Encoder

Product Overview

SE15S Plus is an all-in-one 4K embedded video recording and streaming encoder, integrating hardware encoding, touch control, remote collaboration, and virtual background (Chroma key) features. Suitable for education, medical, training, and professional broadcast scenarios, it enables seamless recording, streaming, switching, and playback experience.

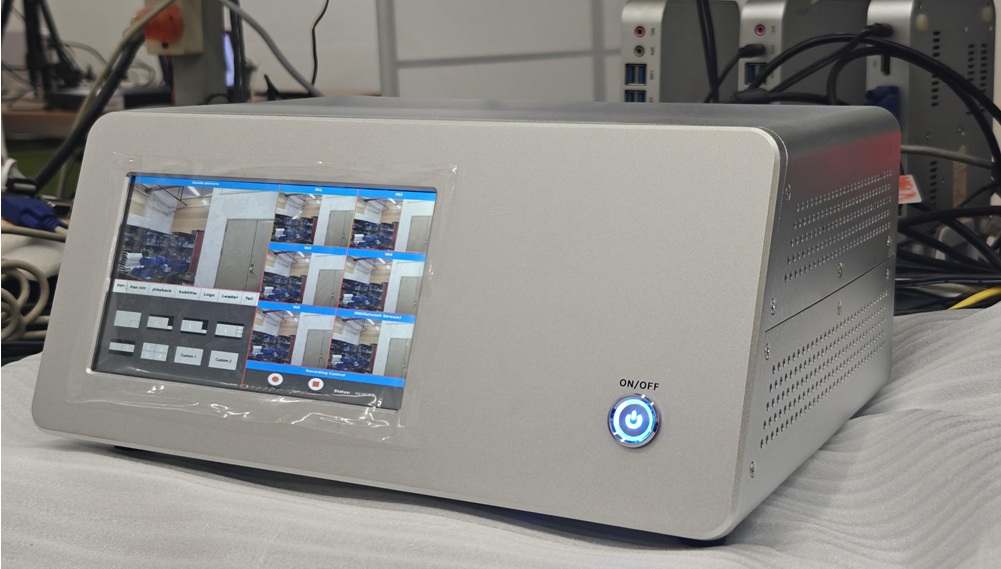

video encoder, hdmi encoder

Key Highlights

Robust Design

Full aluminum lightweight portable chassis
Built-in LCD touchscreen with touch system

High-performance Input & Output

5× HDMI inputs (support up to 4K@30)
Dual 4K HDMI outputs
Automatically adapts resolutions from 640×480 to 4K

Encoding & Processing

Supports 4K H.265 / H.264 encoding and decoding
Ultra-low latency < 1 second

Streaming & Recording

Simultaneous MP4 recording & multiple streaming protocols (RTMP/RTSP/HTTP TS/UDP TS)
Built-in RTMP server, browser preview supported

Detailed Features

Input & Output

Video Input: 5× HDMI (2 channels up to 4K@30, others up to 1080p60)
Video Output: Dual 4K HDMI outputs for touch screen intuitive switching
Automatic signal detection and resolution adjustment

Recording & Streaming

Format: MP4
Mode: Simultaneous recording + live streaming + VOD
Protocol: RTMP / RTSP / HTTP TS / UDP TS
Browser preview without plugins

Control & Monitoring

Touch screen operation (LCD)
Built-in remote director software
Mobile App support (iOS & Android)
Supports 200+ user connections with < 3 s latency
Real-time four-channel monitoring and control

Branding & Content Customization

Multi-language subtitles (up to 4 lines)
Logo overlay (watermark / transparent layer)
Customizable intro & outro

Stability & Automation

Embedded Linux platform
Real-time MP4 protection & auto recovery
Automatic file overwrite
FTP upload & multi-level user permissions

Advanced Features

Chroma key for green/blue screen and virtual backgrounds
Multi-scene composition switching (picture-in-picture, etc.)

Specifications & Highlights

Item	Description
Chassis	Aluminum
Input	5× HDMI (including 4K@30), 1*IP
Output	2× HDMI 4K
Encoding	H.265 / H.264
Latency	<1 second
Network Stream	RTMP / RTSP / HTTP TS / UDP TS
Control	Touch screen + remote App+ WebUI+ API support
Effects	Subtitles, watermark, intro/outro, virtual background
System	Embedded Linux, supports auto-recovery & multi-level user management

P1- Layout of the video mixer

P2- Chroma key

video encoder
