All-in-one 4K embedded video recording and streaming system with HDMI inputs, H.265/H.264 encoding, touch control, remote directing, and virtual background support.

5X HDMI & 1X IP Mix Record Stream VOD 4K Embedded Video Recording & Streaming Encoder Recorder

Name: 5X HDMI & 1X IP Mix Record Stream VOD 4K Embedded Video Recording & Streaming Encoder Recorder
Brand: Insee Technology
Availability: InStock

PRODUCT INTRODUCTION

5X HDMI & 1X IP Mix Record Stream VOD 4K Embedded Video Recording & Streaming Encoder, all-in-one embedded video solution is designed for seamless recording, streaming, live directing, and playback, making it ideal for education, healthcare, training, and professional broadcasting.

DATASHEET VIDEO

PRODUCT DETAILS

SE15S Mini — Embedded Video Recording & Streaming Encoder

Product Overview

The SE15S Mini is a compact embedded video recording and streaming encoder system designed for professional video workflows where space-saving and simplicity matter. Combining high-quality HDMI capture, efficient hardware encoding, and flexible streaming and recording capabilities, it is ideal for education, corporate training, houses of worship, and live event production.

This integrated solution supports multiple video inputs with automatic resolution detection, real-time encoding, and direct browser preview, enabling seamless recording, live streaming, and content management with minimal setup complexity. Built around a reliable embedded environment optimized for stability and 24/7 operation, SE15S Mini brings the power of professional video production into smaller studios and portable setups. Inseetec's platform ensures broad compatibility, real‑time control, and expanded workflow flexibility.
5CH HDMI Encoder Streamer 5ch HDMI encoder for smart education system

Key Features

Compact embedded design optimized for small‑space deployments
High‑quality HDMI video capture with automatic resolution detection
Supports H.265 / H.264 hardware encoding for efficient streaming
Live streaming via RTMP/RTSP/HTTP TS/UDP TS protocols
Simultaneous local recording and streaming workflows
Built‑in HDMI output for direct monitoring
Browser‑based preview without plugins
Mobile and remote control support
Low latency performance for real‑time broadcasting

Detailed Features

System Architecture

Embedded optimized platform for stable 24/7 operation
Hardware‑based video processing for consistent performance

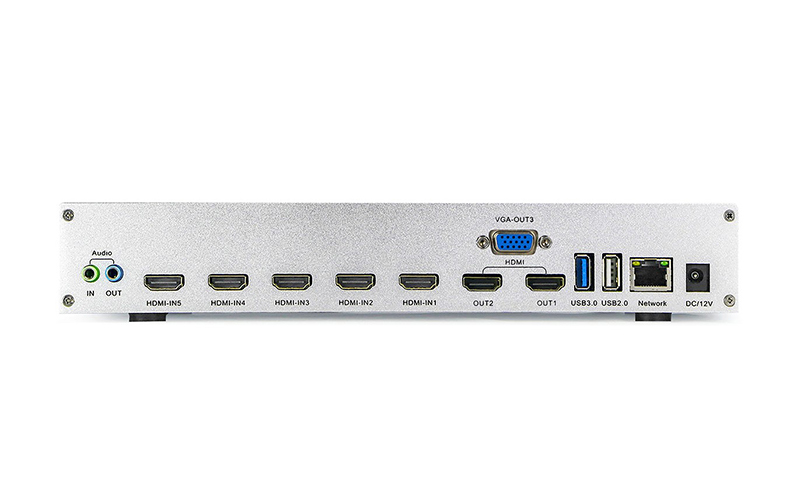

Video Input & Output

HDMI video input with auto resolution recognition
HDMI output for live monitoring or preview

Recording & Streaming

Simultaneous local recording and live streaming support
MP4 or other standard recording formats
Browser‑based playback for recorded media

Control & Monitoring

Web interface and mobile app support
Remote management capabilities

Specification Highlights

Feature	Specification
Video Input	HDMI (auto resolution detection up to 4K)
Video Output	HDMI output
Encoding	H.265 / H.264
Streaming	RTMP / RTSP / HTTP TS / UDP TS
Recording	MP4 (local storage)
Control	Web/Mobile interface
Latency	Low latency streaming
OS	Embedded stable platform

Contact Us for More Info

Inquiry on the Item: SE15S Mini

Send Email

P1- Touch screen system layout
Video encoder, streamer, video mixer

P2- Chroma key

PRODUCT SPECIFICATION
