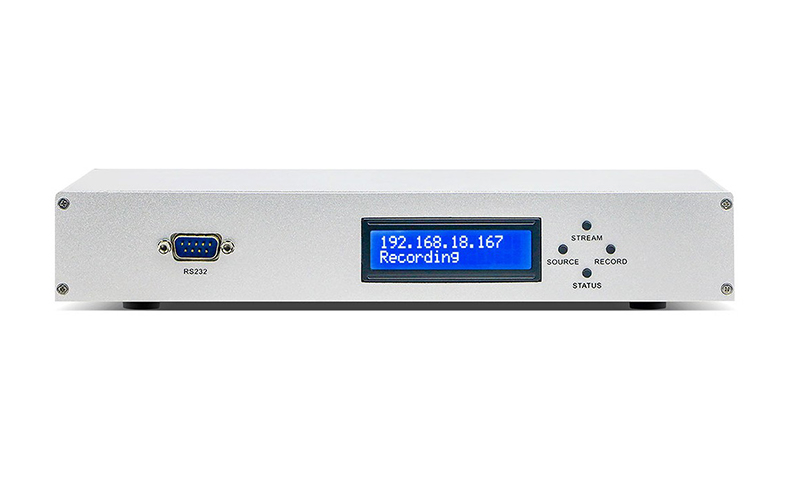

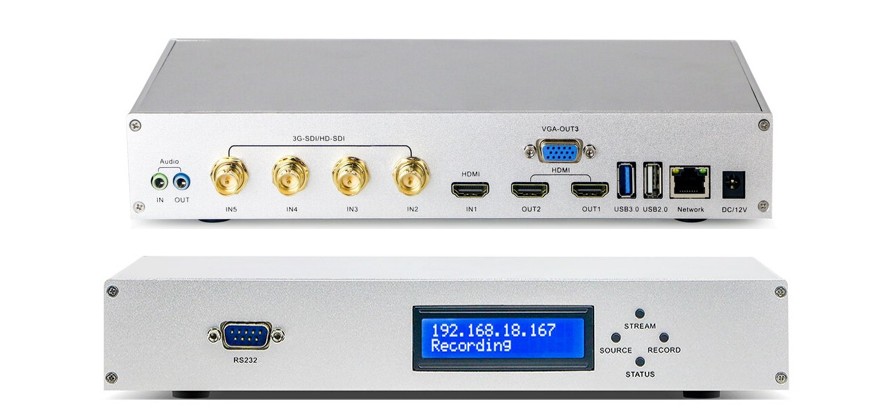

SE105 Mini — 4K HDMI + 3G‑SDI Embedded Video Recording & Streaming System

Product Overview

The SE105 Mini is a compact all‑in‑one embedded video recording, streaming and live directing encoder system featuring 1× HDMI (up to 4K@30) and 4× 3G‑SDI (up to 1080p60) inputs. It combines high quality H.265/H.264 encoding and decoding, dual 4K HDMI outputs, touchscreen control support, remote collaboration and advanced workflow features to simplify professional video production workflows for education, healthcare, training centers and professional broadcast environments.

Key Features

• Compact & durable embedded design with all‑aluminum mini chassis and 2.5″ SATA storage support
• Flexible video inputs: 1× HDMI up to 4K@30, 4× 3G‑SDI up to 1080p60
• Auto‑resolution detection from 640×480 up to 4K
• Supports 4K H.265/H.264 encoding and decoding with low latency
• Dual 4K HDMI outputs; compatible with 13″/23″ touchscreen display for intuitive control
• Recording & streaming in MP4 format; synchronous rec + live + VOD + remote/local directing
• Multi‑view modes including resource, movie and picture‑in‑picture
• Network streaming via RTMP/HTTP TS/UDP TS/RTSP with built‑in RTMP server
• Browser‑based live playback without plugins
• Remote directing software with real‑time 4‑view; iOS & Android app support up to 200+ users
• Multi‑language subtitles (4 lines) and transparent logo support
• Embedded Linux OS with auto file recovery, overwrite, FTP upload and multi‑level user management
• Green/blue screen chroma key and customizable virtual background/scene composition

Detailed Features

System Architecture

• All‑in‑one embedded system for reliable 24/7 operation
• High‑performance hardware encoding & decoding for stable real‑time processing

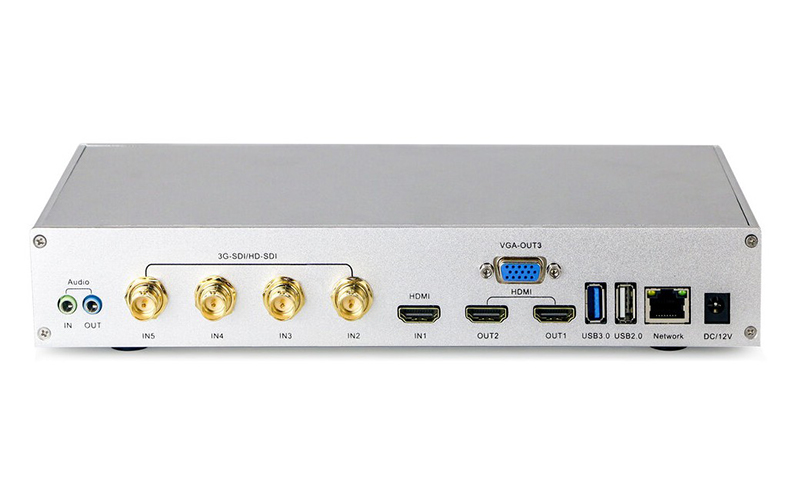

Video & Audio I/O

• 1 × HDMI input supporting up to 4K@30
• 4 × 3G‑SDI inputs supporting up to 1080p60
• Dual HDMI 4K outputs compatible with touchscreen monitoring

Recording & Streaming

• MP4 recording format for local storage
• Synchronous recording and live streaming support
• Various network streaming protocols with built‑in RTMP server

Control & Monitoring

• Supports external touchscreen displays for intuitive control
• Remote directing app for multi‑view monitoring and control

Specification Highlights
