All-in-One Embedded System · Model SE105-MAX
SE105-MAX — 1*4K HDMI+ 4*3G SDI+ IP Recording & Streaming System
Industrial all-in-one embedded encoder with built-in 15.6″ LCD, 1* HDMI inputs,4* 3G-SDI input & 1*IP, 4K H.265/H.264 hardware encoding & decoding, multi-mode live production — designed for education, healthcare, enterprise and professional broadcast.
Product Overview
The SE105-MAX is a rugged, industrial all-in-one embedded video recording, streaming and live-directing system. It features a built-in 15.6″ LCD display for directing, playback and configuration, 1* HDMI+ 4*3G-SDI+ 1*IP hardware inputs, hardware 4K H.265/H.264 encoding and decoding, dual HDMI 4K outputs, and a comprehensive suite of streaming, recording, overlay and virtual studio tools. The system runs on embedded Linux stored in chip — virus-proof and safe to power off at any moment — enabling stable, unattended 24/7 operation across education, healthcare, training, enterprise and professional broadcast environments.
Built-in
Matrix+ Touch Sys
Key Features
★Industrial all-in-one embedded chassis — built-in 15.6″ LCD for directing, playback & settings; 1× internal 3.5″ SATA drive bay.
★1* HDMI+ 4* 3G-SDI+ 1*IP hardware capture — auto-detect resolution & frame rate (640×480 ∼ 3840×2160).
4K H.265/H.264 encoding & decoding — hardware accelerated; per-stream 1080p60 for ultra-smooth, artifact-free motion.
1× USB 3.0 + 1× USB 2.0 — local playback & file export without any network connection required.
WYSIWYG touch directing — built-in 15.6″ integrated keyboard/mouse/touch display; 2× HDMI outputs at up to 4K.
MP4 recording with six production modes — Sync Record · Live Stream · VOD · Remote Direct · Local Direct · Interactive.
Multi-view layout modes — Resource (multi-stream multi-window) / Movie (single-stream full-screen) / Picture-in-Picture.
Remote directing software — real-time 4-view monitoring, live switching, simultaneous recording & web-button control.
Unattended 24/7 auto-recording — record-on-boot; auto disk overwrite; configurable segmentation; FTP auto-upload.
★Embedded Linux (chip-resident) — virus-proof; safe instant power-off; MP4 real-time protection; power-loss auto file recovery; multi-level user management.
★Chroma key & virtual scene compositing — green/blue/custom color key; 3-source compositing (scene bg + background camera + chroma camera).
Detailed Features
System Architecture
Industrial reinforced embedded chassis Built-in 15.6″ LCD (directing / playback / settings) 1× internal 3.5″ SATA HDD bay (user-installable) Embedded Linux in chip — virus-proof & stable Safe instant power-off; long-duration unattended operation Multi-level user management (Admin + Standard)
Video Capture & I/O
1× HDMI+ 4* SDI+1* IP inputs (hardware capture) Auto-detect resolution & frame rate Input range: 640×480 ∼ 3840×2160 Supports 1080p25/30/50/60, 1024×768@60 and more 2× HDMI output up to 4K
Encoding & Decoding
4K H.265 / H.264 hardware encode & decode Per-stream recording at 1080p60 H.265/H.264 Double frame rate — eliminates motion artifacts 4K HDMI live stream, record & VOD supported 1× RTSP/TS decode input (up to 4K) Decoded stream: full-screen + independent audio output
Recording
MP4 format with real-time file protection Power-loss automatic file recovery Record-on-boot; auto-overwrite oldest file when full Configurable auto-segmentation interval FTP auto-upload to specified server / account 1× USB 3.0 (drive) · 1× USB 2.0 (mouse)
Streaming & Protocols
RTMP / HTTP TS / UDP TS / RTSP Built-in RTMP Server (no FMS/Red5 required) Network streaming latency ≤1 second Browser live view — no plugin required HTML5 VOD on-demand playback Web-button directing from any browser
Production Modes
Sync Record · Live Stream · VOD Remote Directing · Local Directing · Interactive Resource Mode: multi-stream, multi-window Movie Mode: single-stream, full-screen PiP Mode: picture-in-picture 4-view real-time remote monitor + simultaneous record
App & Remote Access
Admin-managed user credentials & roles 200+ simultaneous users supported Live view & VOD playback in-app End-to-end APP latency ≤3 seconds Switch any channel directly within the app
Overlays & Graphics
4-line subtitle overlay; per-line independent control Font size, color, position configurable per line Chinese & English subtitle support Transparent background logo overlay Auto intro/outro bumper clip insertion
Chroma Key & Virtual Studio
Green screen / blue screen / custom color-key chroma keying 3-source compositing: scene background + background camera + chroma camera Any combination output composition supported Virtual background & XR production ready
Specification Highlights
| Feature |
Specification |
| System |
Industrial all-in-one embedded; reinforced chassis; built-in 15.6″ LCD display |
| Storage |
1× internal 3.5″ SATA HDD bay (user-installable) |
| Video Inputs |
1* 4K HDMI+ 4* 3G-SDI+ 1*IP |
| Input Resolution |
640×480 ∼ 3840×2160; auto-detect resolution & frame rate |
| Encoding |
4K H.265 / H.264 (hardware); per-stream 1080p60 H.265/H.264 |
| Decoding |
4K H.265 / H.264 (hardware); 1× RTSP/TS decode input (up to 4K) |
| Video Output |
2× HDMI (up to 4K) |
| USB |
1× USB 3.0 (external storage) · 1× USB 2.0 (mouse) |
| Recording |
MP4; real-time file protection; power-loss auto-recovery; auto-segmentation; FTP auto-upload |
| Stream Latency |
≤1 second (network) · ≤3 seconds (APP end-to-end) |
| Streaming Protocols |
RTMPHTTP TSUDP TSRTSP — Built-in RTMP Server (no FMS/Red5 required) |
| Playback |
Plugin-free browser live view · HTML5 VOD |
| Production Modes |
Sync Record · Live Stream · VOD · Remote Direct · Local Direct · Interactive |
| Layout Modes |
Resource (multi-stream) · Movie (full-screen) · Picture-in-Picture |
| Subtitles |
4 lines; per-line font, size, color, position (Chinese & English) |
| Logo / Bumpers |
Transparent logo overlay · Auto intro/outro bumper insert |
| Chroma Key |
Green / Blue / Custom color key · 3-source virtual scene compositing |
| OS |
Embedded Linux (chip-resident, virus-proof, safe instant power-off) |
| Auto Functions |
Record-on-boot · Disk auto-overwrite · Auto-segmentation · FTP upload · Power-loss file recovery |
| User Management |
Multi-level: Administrator + Standard user roles |

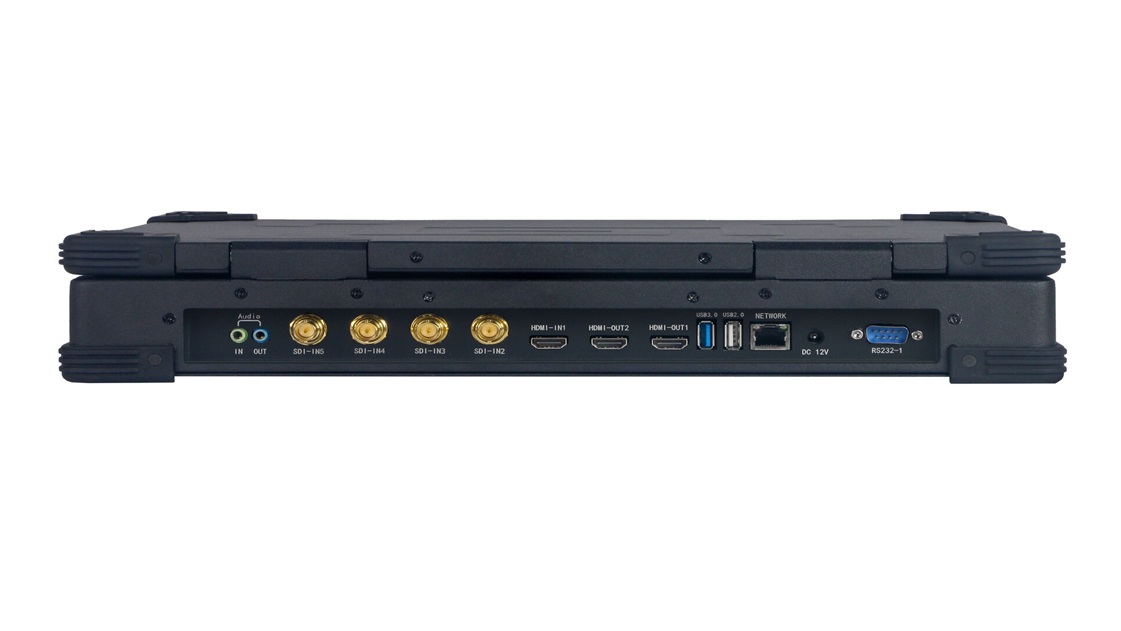

Product Images

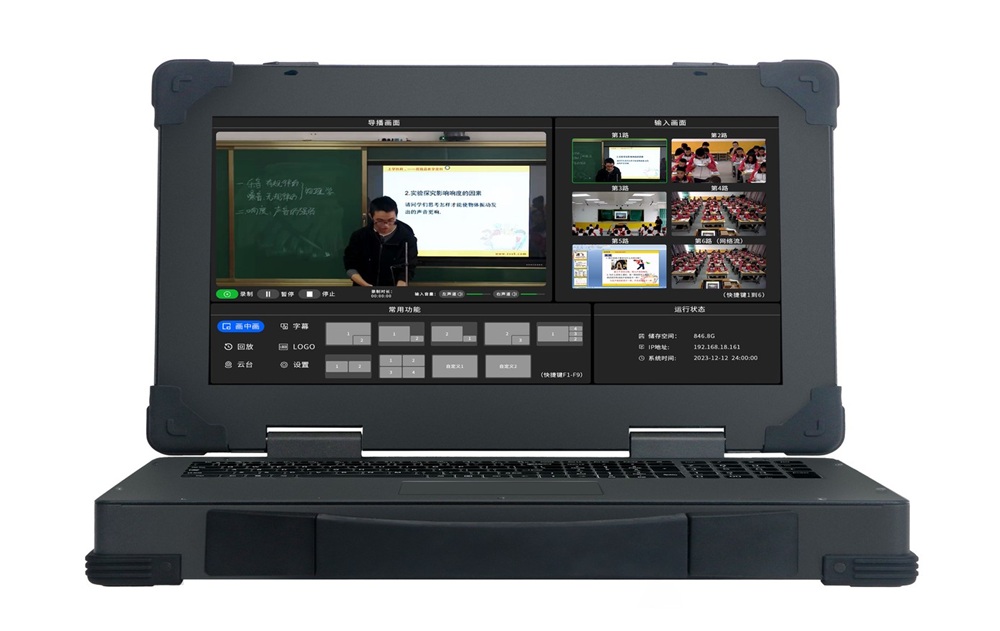

P1 — Built-in Touchscreen Directing Interface
