Enterprise Small and Medium-sized Meeting Room All-in-One Video Conference Host

It adopts a highly integrated split design, is equipped with a high-performance processor, and has 4K30 video encoding and decoding capabilities, supporting H.265/H.264 video protocols.

It integrates multiple conference platforms, enabling one-click access to traditional video conferences and a variety of cloud conference platforms, so as to meet users' conference needs in various scenarios.

One-click switching to BYOM mode meets diverse scenario requirements.

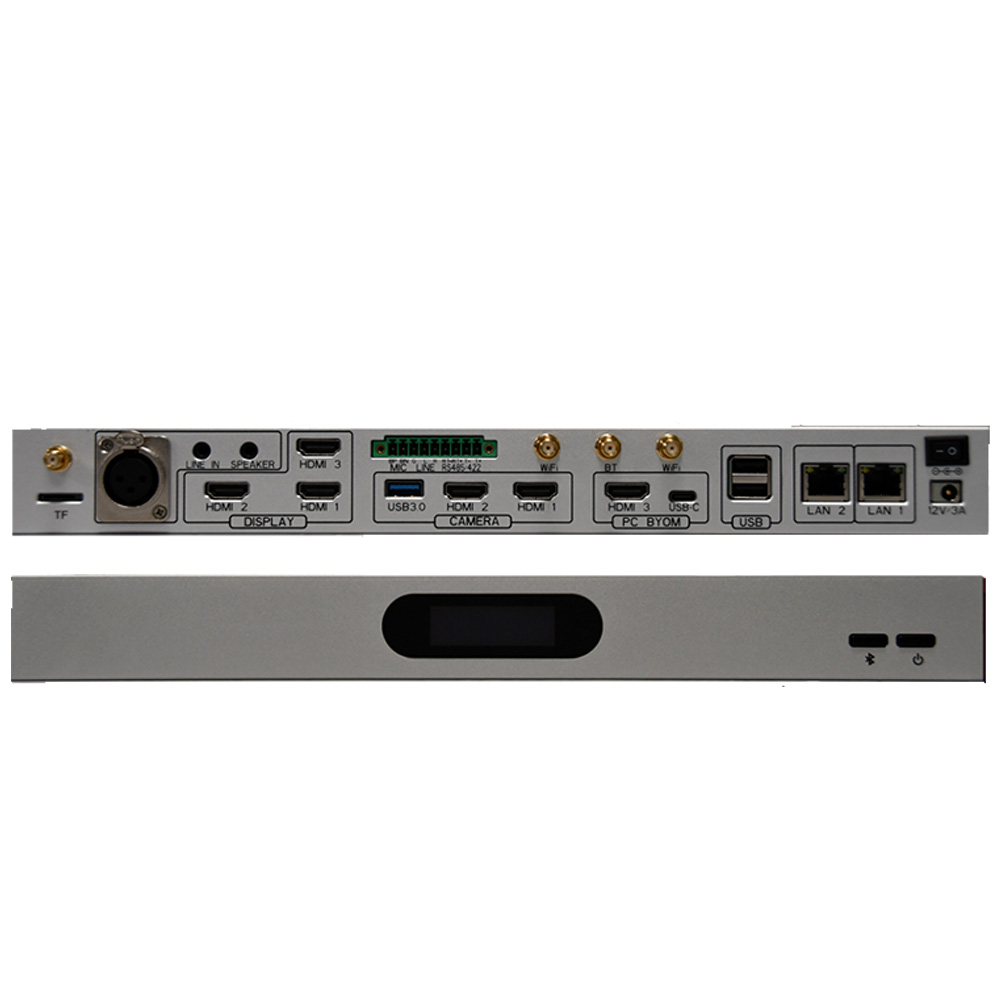

Rich Interfaces:

It integrates multiple audio and video input and output interfaces, as well as peripheral interfaces such as USB and TF card. The rich interfaces can meet various general applications.

It integrates RS485/RS422 and offers optional 5G/4G communication modules, allowing for the expansion of more industrial applications.

Equipped with the Android 12 system, it ensures smoother application operation, personalized interface design, and more secure privacy protection.
Ø Multi-Platform Support:
It has built-in multiple conference platforms such as Tencent Meeting Rooms, DingTalk Rooms, and Zoom, enabling users to switch and join meetings with one click.

One-click switching to BYOM mode meets diverse scenario requirements.
Ø High Openness:
The open system interface allows for the independent installation of application software, and the audio and video capabilities of the device can quickly empower the application software.

It provides system API interface documents, enabling users to design interfaces that are more suitable for industrial applications by themselves.
Ø Easy Deployment:
With a split design, it has a compact and elegant appearance, and is suitable for deployment in various locations such as meeting rooms and cabinets.



• Multi-video source composition and directing
• 3 video inputs and 3 video outputs, with rich interfaces
• Tencent Meeting Rooms
• Dual-band Wi-Fi & BT
• BYOM peripheral mode
• Optional 5G/4G module, enabling wide industrial applications



Category	Item	Specification
System	Operating System	Android 12
	Processor	4-core Arm A76 + 4-core Arm A55
	NPU Computing Power	6T
	Storage	8G + 128G
Protocol Features	Multimedia Framework Protocol	ITU-T H.323, IETF SIP
	Video Encoding and Decoding Protocol	ITU-T H.265, H.264, H.264 HP
	Audio Encoding and Decoding Protocol	AAC-LC, AAC-LD, G.722.1, G.722.1C, G.711a/u, G.722, Opus, Silk
	Dual Stream Protocol	ITU-T H.239, BFCP
	Network Transmission Protocol	TCP/IP, RTP, RTCP, HTTP/HTTPS, IPv6/IPv4, DNS, DHCP, TR069
	Other Protocols and Standards	H.225, H.235, H.245, H.281, DTMF, SRTP, SNTP, TLS
Audio and Video Features	Audio Algorithm	AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Automatic Noise Suppression)
	Main Stream Resolution	CIF, 4CIF, 720P, 1080P, 4K
	Auxiliary Stream Resolution	CIF, 4CIF, 720P, 1080P, 4K
	Frame Rate	15 fps, 20 fps, 25 fps, 30 fps
	Composited Video Source	Supports composition and directing of multiple video sources
	Other Features	Supports multiple screen layout modes such as PIP (Picture-in-Picture), POP (Picture-out-Picture), and split-screen
Service Features	Bandwidth	512 kbps, 768 kbps, 1024 kbps, 1920 kbps, 4M, 6M, 8M
	Encoding and Decoding	H.265/H.264 dual 4Kp30
	Encryption	H.235 signaling and media stream encryption, AES encryption, TLS/SRTP encryption, supports dual-stream encryption
	Conference Control	Supports H.323/SIP standard conference control
	Secondary Dialing	Supports DTMF secondary dialing
	Diagnostics	Supports background log recording, export, audio and video diagnostics, and other functions
	Subtitle Banner	Supports subtitle banner configuration and overlay
	Background Management	Supports web background configuration, upgrade, and other management functions
	Platform Connection	Supports TR069 connection to third-party management platforms
Interface	Camera Control	1 * RS422/RS485
	TF Card	1 * TF Card
	Power	1 * DC 12V power interface
	Kingston Lock	1 * Kingston Lock
Electrical Features	Power Adapter	12V 3A
	Operating Temperature	0-45℃
	Operating Humidity	5%-90% (no condensation)
	Storage Temperature	0%-95% (no condensation)

Key Term Explanations

• BYOM (Bring Your Own Meeting): A meeting mode that allows users to connect their own devices (such as laptops, smartphones) to the conference all-in-one device to conduct meetings, realizing flexible switching of meeting devices.
• NPU (Neural Processing Unit): A dedicated processor for neural network computing, which can effectively improve the efficiency of the device in processing intelligent tasks such as image recognition and audio analysis.
• PIP (Picture-in-Picture): A screen display mode where a small picture is embedded in the main picture, enabling simultaneous display of multiple video sources.
• POP (Picture-out-Picture): Similar to PIP, it is also a multi-picture display mode, usually with relatively independent display areas of multiple pictures, rather than a nested form.
• TR069: A technical specification formulated by the Broadband Forum, mainly used for remote management of network devices, supporting functions such as device configuration, status monitoring, and software upgrade.
