IS-310D6 4G body camera, high performance 2+16GB+32GB TF card, android 12 system

PRODUCT INTRODUCTION

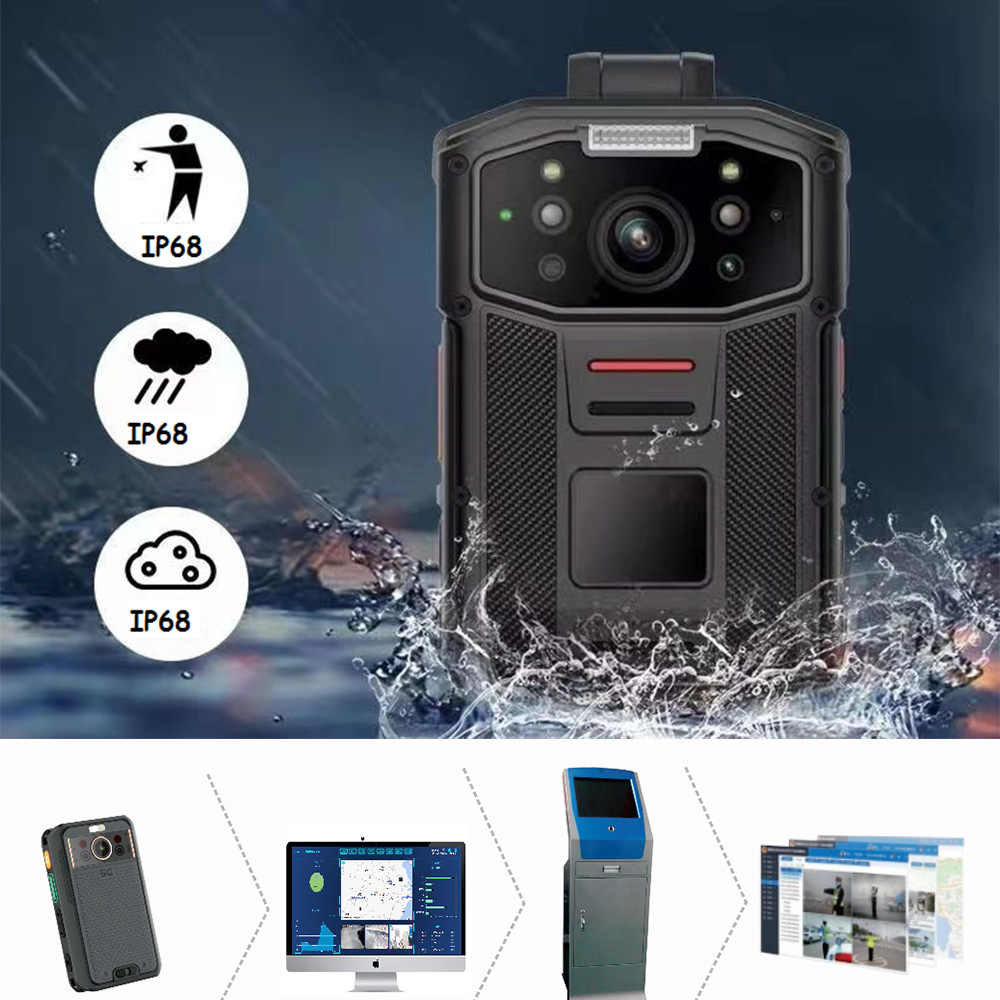

Powered by 5G and AI, this next-generation body-worn camera features 4GB RAM, 64GB storage, and four cameras in a compact design. It delivers ultra-loud audio for clear communication in noisy environments, supports 4K recording with EIS stabilization and distortion-free lenses, and is compatible with the 700MHz band.
DATASHEET VIDEO

PRODUCT DETAILS

IS-310D6 4G body camera, high performance 2+16GB+32GB TF card, android 12 system
This advanced 5G body camera supports 5G/4G/Wi-Fi, Sub-6 bands, SA/NSA dual-mode, and global 4G frequencies including broadcast 700MHz. It enables high-bandwidth 4K video streaming, ultra-low latency, and stable multi-user connections. With Beidou high-precision GPS, real-time tracking and playback are more accurate. Featuring triple-camera setup, it captures 4K/2K video, 42MP photos, and supports dual backup. It offers two-way AV intercom, picture-in-picture, instant messaging, and smart event linkage. Running on Android OS, it supports smart apps, remote cloud control, local face recognition, and advanced recording/photo/audio features like segmenting, tagging, and playback.


Key Features of the 5G Smart Body Camera:

-Supports 5G/4G/Wi-Fi; compatible with NR N1/N3/N28/N77/N78/N79/N41 and broadcast 700MHz

-Full Netcom 5G, Sub-6GHz, SA/NSA dual-mode

-High bandwidth for 4K UHD video streaming (optional)

-Ultra-low latency for smooth real-time command and communication

-Flexible, congestion-free networking with multi-user support

-Beidou high-precision positioning with accurate live tracking and playback

-Triple-camera system for video, ID photos, and AI image recognition

-4K/2K video, 42MP photos, dual local/cloud backup

-Two-way AV intercom, picture-in-picture, P2P messaging, emergency linkage

-Android OS with smart app integration and remote cloud management

-Supports local face recognition, capture, and intelligent uploads

-Core features: video, photo, audio, segment recording, tagging, playback

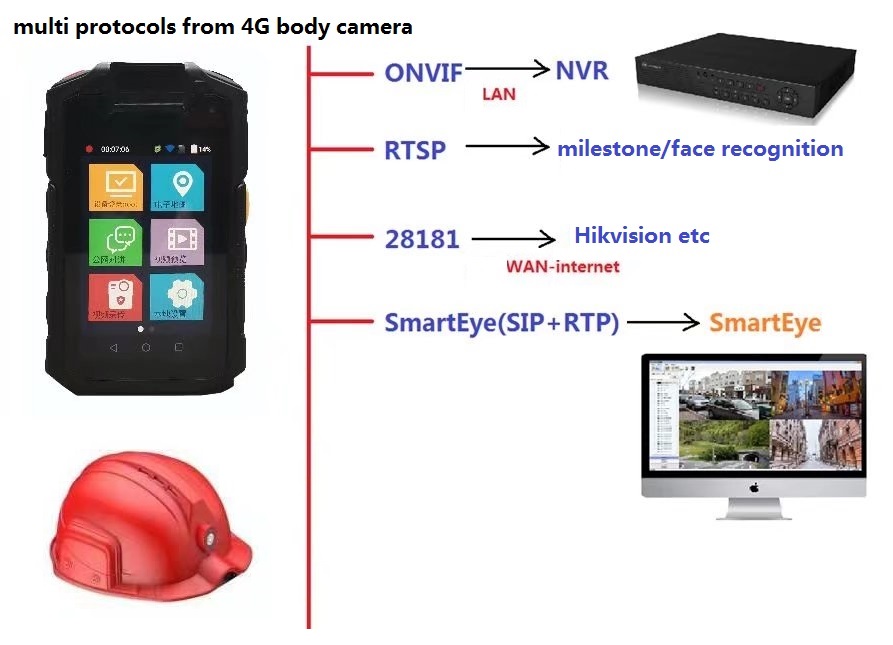

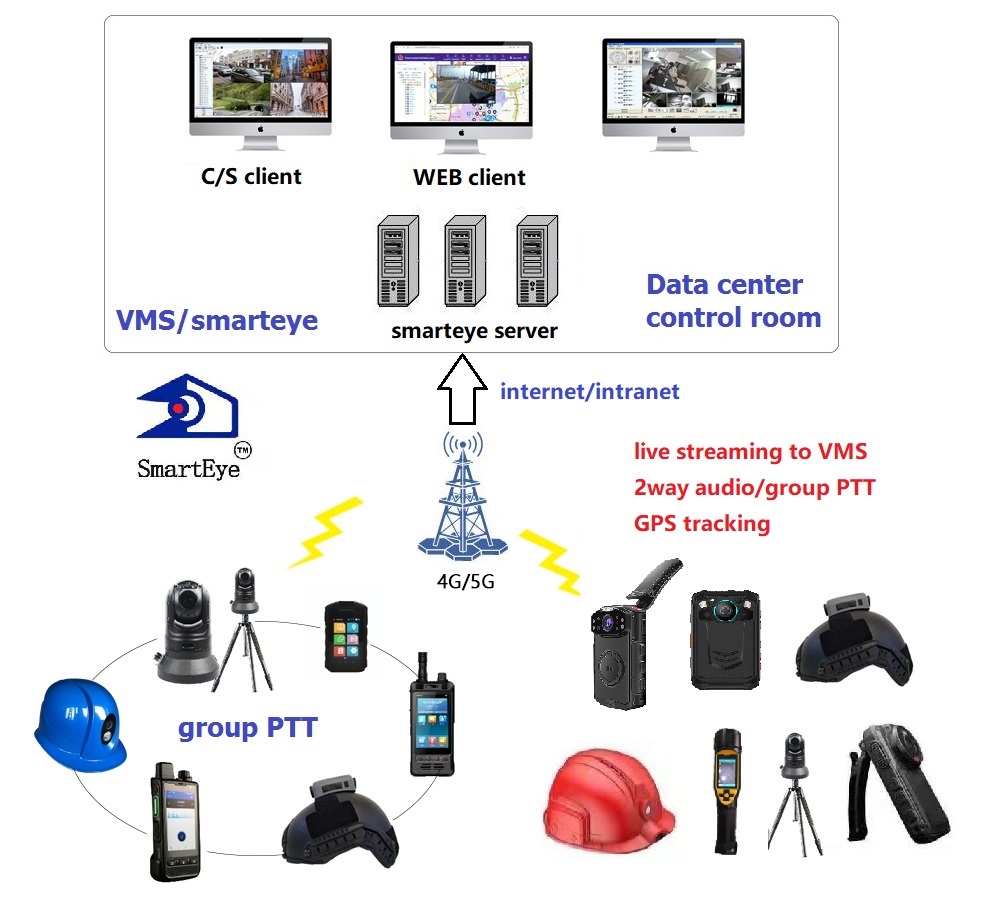

System diagram

PRODUCT SPECIFICATION

processor
MTK MT6769 12nm 8core@2.0G low power consumption
system
Android 12
sensor
GC2385+SC530AI+0V4689 FF+AF
memory
2+16GB, max 4+64GB optional
touch panel
5point touch
IR
4*850nm LED
white light
2
LCD
3.1' inch IPS, 480*800 (RGB)
speaker
2613,2W IP68
MIC
dual Microphone
sensors
G-sensor gyroscope
compass
Yes
motor
vibration
NFC
optional
cell
2G：GSM(B2/3/5/8)、 3G：WCDMA（B1/5/8）、 4G：TDD（38/39/40/41）、FDD（B1/2/3/4/5/7/8/20/28） LTE global
WIFI
dual band, WIFI2.4,WIFI5.8 a/b/g/n/ac
bluetooth
BT5
GPS
GPS, A-GPS，GLONASS，BD，Galileo
USB
TYPE-C USB2.0
earphone/ docker
TYPE-C USB
extcam
USB/UVC caemra 1080P
protection
IP68
shutter
electrical
cont-shoot
yes
digital zoom
8~24
w balance
auto
snapshot
max 54M
video
max 2K（2560*1440） 30FPS
pre/post rec
max 1080P 30
format
H.264/H.265
film
MP4/mkv
VMS
smarteye with live streaming, group PTT/PoC, map/geo-fence, alarm, management etc
battery
main, 320mAh , 3.8V; Backup 60mAh for 5min

Bridging Distances with Video Power
