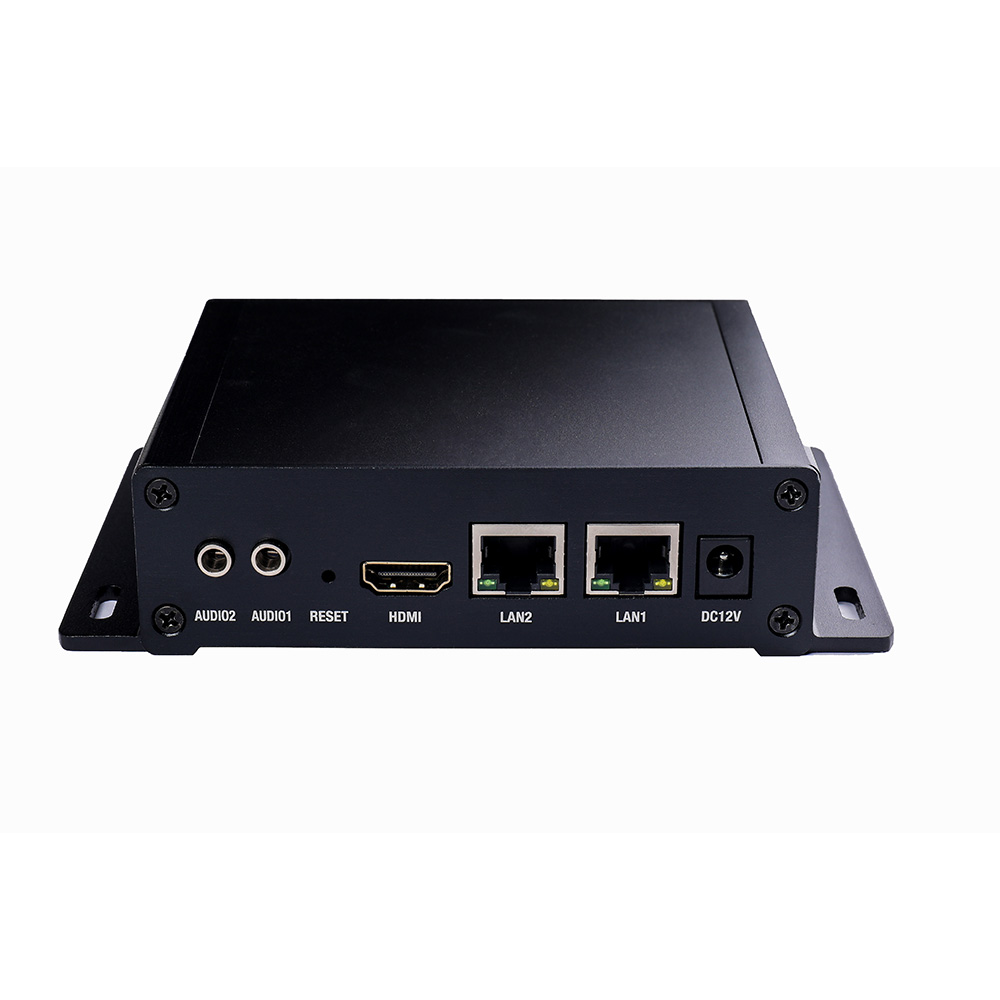

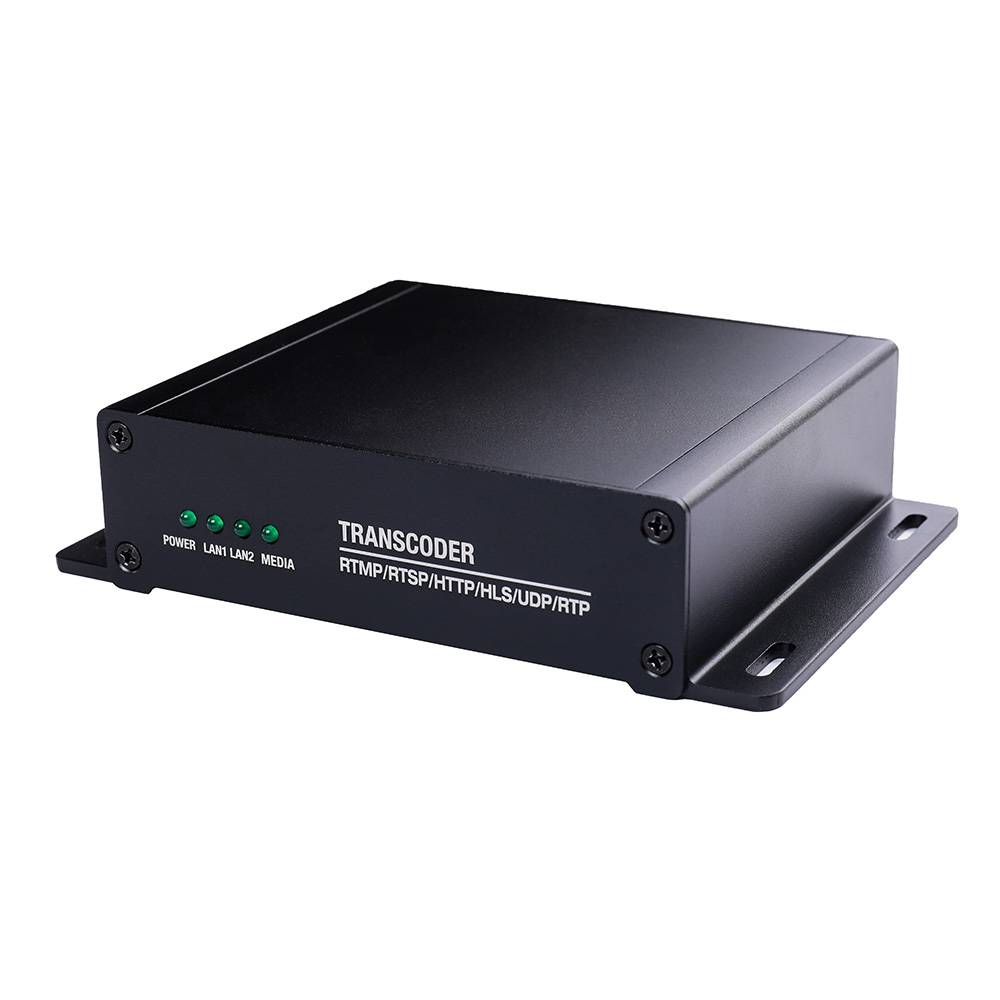

The H.265 forwarding transcoder supports multi-channel network video transcoding and forwarding, with the ability to transcode up to 9 channels, forward up to 36 channels simultaneously. It features an HDMI output interface for real-time display of transcoded video streams.
The device supports flexible transcoding capabilities, including:
1 channel of 4K@60fps
2 channels of 4K@30fps
4 channels of 1080P@60fps
9 channels of 1080P@25fps
It supports H.265 and H.264 video formats and offers protocol compatibility with RTMP, RTSP, HTTP-TS, HTTP-FLV, HLS, MP4, SRT, UDP multicast, RTP multicast, and more. Compatible with 99% of network cameras on the market, it includes a built-in ONVIF discovery tool for automatically identifying RTSP stream addresses for easy transcoding setup.
This transcoding solution is widely used in digital signage, education, healthcare, live broadcasting, conferencing, and video surveillance, offering a reliable and efficient way to manage and distribute video streams across various platforms and networks.
| Specification | Parameter | ||
| Audio and video in | Video in | Network Stream | |
| Audio in | Row audio or Analog 1 or Analog 1 | ||
| Tanscode | Video transcode | Channel | 1/2/4/9 |
| Audio action | Choose a channel | ||
| Encoding Type | H.264/H.265 | ||
| FPS | 5-60 | ||
| GOP | 5-300 | ||
| Bit rate(k bit) | 32-32000 | ||
| Encoded size | 4906x2160/3840x2160/2560X1140/1920x1200/1920x1080/1680x1056/ 1680x1056/1600x1200/1600x900/1366x768/1280x1024/1280x720/ 1024x768/1024x576/960x540/850x480/800x600/720x576/720x540/ 720x480/720x404/704x576/640x480 |
||
| H.264 level | baseline profile/main profile/high profile | ||
| Bit rate control | CBR/VBR | ||
| Stream | RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP /RTP | ||
| Audio transcoding | Encoder | AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus | |
| Coding bit rate | AAC:48000~320000/AAC+:24000~48000/ AAC++:12000~32000/MP3:64000~320000/ MP2: 64000~320000/ AC3:40000~640000/ Opus:8000~256000 |
||
| G711A Over PTE | Disable/Enable | ||
| G711 | Disable/Enable | ||
| G711 Over RTSP | Disable/Enable/Enable and resample with 8k | ||
| OSD | TYpe | Text/Img/Scrolling text /Time | |
| Transparency | 0-255 | ||
| Zone | 4 Zone | ||
| X | 0-1920 | ||
| Y | 0-1080 | ||
| LOGO | 4 logos can be uploaded for selection | ||
| Font size | 8-72 | ||
| Background color | Transparent/White/Black | ||
| Font color | RGB Color | ||
| Tansmit |
Video Tansmit | Channel | 36 |
| Stream | RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP /RTP | ||
| Audio Tansmit | Encoder | AAC /AAC+/AAC++/MP3/MP2/ AC3/Opus | |
| Coding bit rate | AAC:48000~320000/AAC+:24000~48000/ AAC++:12000~32000/MP3:64000~320000/ MP2: 64000~320000/ AC3:40000~640000/ Opus:8000~256000 |
||
| G711A Over PTE | Disable/Enable | ||
| G711 | Disable/Enable | ||
| G711 Over RTSP | Disable/Enable/Enable and resample with 8k | ||
| Common | Network | Duble 1000Mbps | |
| Configuration | WEB,Upload,Reset | ||
| ONVIF | Support ONVIF to search and browse videos | ||
| Power Supply | 12V/DC,2A | ||
| Power | 5W | ||
| Temperature | -20℃+60℃ | ||
| Humidity | <90%, non-condened | ||
| Size | 372g | ||
| Weight | 14.6*3.5*10.3cm | ||
