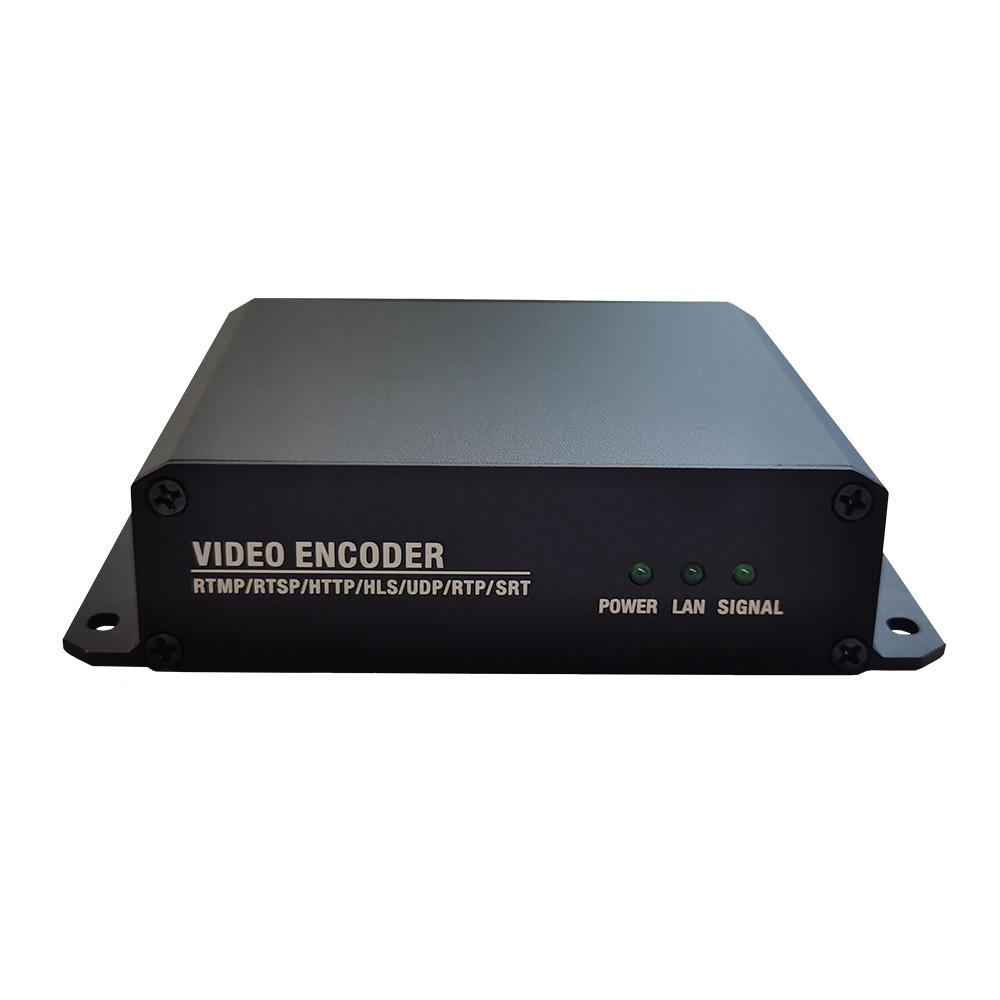

IS-2210C CVBS Encoder

H.265 CVBS Loop-Out Encoder

Product Overview

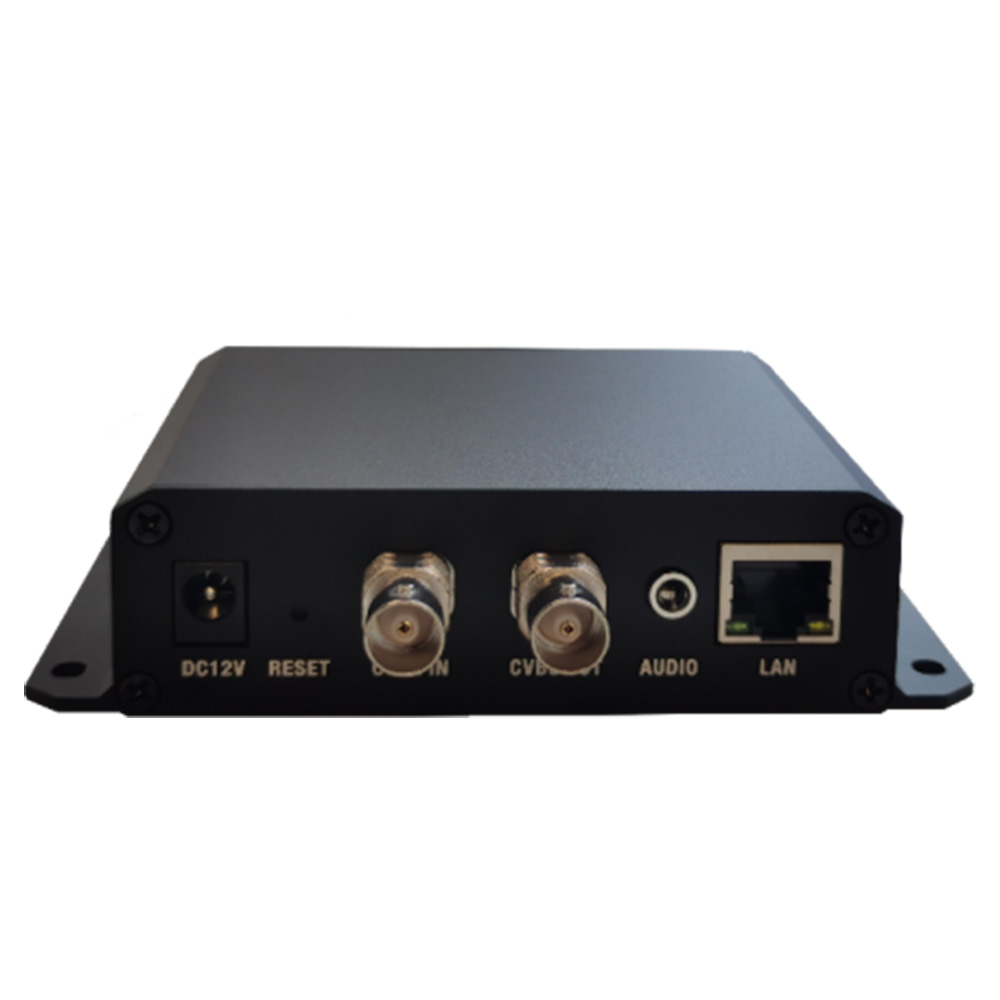

This encoder captures analog CVBS signals via the CVBS IN interface, supporting resolutions up to 720x576P60. Each channel outputs one main stream and three sub-streams. The CVBS OUT interface provides loop-through output identical to the input, allowing real-time monitoring of the video source.

Key Features

• Analog Video Input

  • Supports CVBS input up to 720x576P60

  • CVBS loop-out for real-time monitoring

• Multiple Encoding Formats
  Supports H.265, H.264, and MJPEG

  • MJPEG format enables low-latency playback on PC and mobile browsers

• Ultra-Low Latency LAN Streaming
  Utilizes a proprietary PTE protocol for LAN transmission with latency as low as 80–200 milliseconds

• Comprehensive Protocol Support
  Compatible with:
  RTMP, RTSP, HTTP TS, HTTP FLV, HLS, HLS MP4, MP4, SRT, UDP Multicast, RTP Multicast

  • MP4 (with H.265) supports browser playback on both PC and mobile

  • Multicast allows multiple clients on the same LAN to view the stream simultaneously and supports IPTV server integration

  • RTMP allows stream pushing to local servers or public live streaming platforms

• Surveillance System Integration

  • ONVIF support for seamless integration with NVRs for recording and playback

  • GB28181 protocol compatibility ensures integration with national surveillance systems

Typical Applications
Well-suited for conference streaming, entertainment broadcasts, IPTV systems, and video surveillance deployments.
